PCI Rear Toe Link Set

PCI Rear Toe Link Set - Toyota GR86 / Subaru BRZ / FR-S (2013+)

Precision Alignment Correction & Zero-Deflection Stability

Master your rear suspension geometry with the PCI (Pro Car Innovations) Rear Toe Links. Essential for any lowered GR86 or BRZ, these adjustable links allow you to precisely dial in your rear toe settings far beyond the capability of the factory eccentric bolts. By utilizing a turnbuckle-style adjustment, you can make minute changes on the alignment rack without having to remove the links. Most importantly, PCI replaces the compliant factory rubber bushings with high-misalignment spherical bearings, eliminating the "toe-steer" effect that occurs when rubber bushings deflect under heavy cornering or braking loads.

What’s Included in the Box:

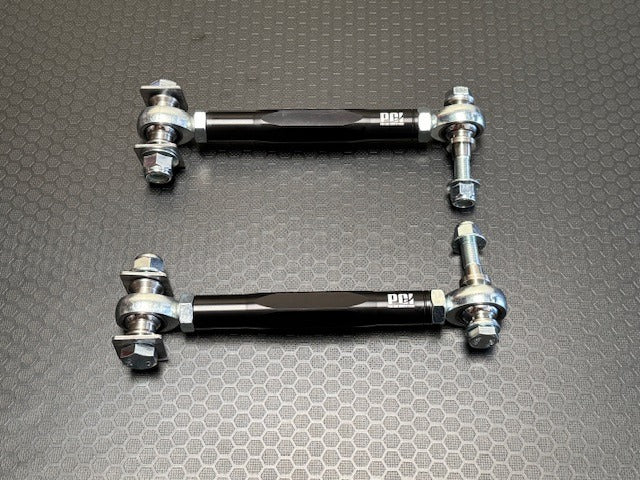

- Pair of Rear Toe Links: (2) High-strength adjustable link assemblies.

- Spherical Bearings: Pre-installed PTFE-lined racing bearings.

- Stainless Steel Spacers: Precision-machined for a perfect fit into the rear subframe.

- Grade 8 Hardware: High-tensile fasteners for long-term reliability.

The PCI Advantage

- Extended Adjustment Range: Specifically designed to correct the extreme toe-in that occurs when lowering the ZN/ZD chassis, ensuring you can return to factory specs or custom track alignments.

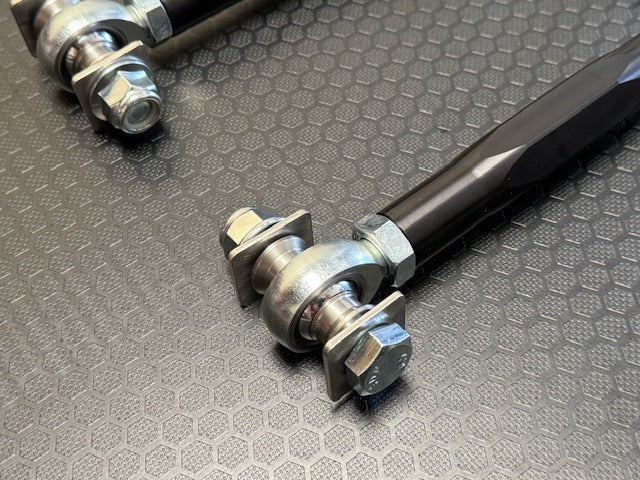

- Spherical Bearing Technology: PCI’s signature bearings provide a smooth, bind-free range of motion while eliminating lateral deflection. This ensures the rear wheels stay pointed exactly where you set them, regardless of the load.

- On-Car Adjustability: The turnbuckle design features a hex-center that allows for quick and easy adjustments while the car is on the alignment rack, saving time and labor costs.

- 6061-T6 Billet Aluminum: CNC-machined from aerospace-grade aluminum for maximum rigidity and weight savings. These links are significantly stronger than the OEM stamped steel units.

- Corrosion Protection: Finished in a hard-anodized matte black coating to withstand road salt, grime, and the high-heat environment near the exhaust.

- Improved Traction: By eliminating "bushing squirm," these links provide a more stable contact patch, leading to better traction during corner exit and more predictable behavior under heavy braking.

Product Specifications

- Part Number: TL-GR86-R1

- Material: 6061-T6 Billet Aluminum

- Bearing Type: High-Load Spherical (PTFE Lined)

- Adjustment: Turnbuckle Style (On-Car Adjustable)

- Finish: Matte Black Anodized

- Country of Origin: USA

Vehicle Compatibility

- Toyota GR86 (2022, 2023, 2024, 2025, 2026+)

- Subaru BRZ (2022, 2023, 2024, 2025, 2026+)

- Toyota 86 / Scion FR-S (2013-2021)

- Subaru BRZ (2013-2021)

Precision Tip: If you have already installed adjustable Rear Lower Control Arms to fix your camber, these toe links are a mandatory partner. When you pull the bottom of the tire "in" to reduce negative camber, it pushes the toe out of spec. You need these links to pull the toe back into line. For a dedicated track setup, pair these with PCI Spherical Trailing Arms to completely remove rubber from the rear suspension equation.
