PCI Slider Seat Mounts

PCI Slider Seat Mounts - Toyota GR86 / Subaru BRZ / FR-S (2013+)

Ultra-Low Profile, Maximum Rigidity, and Precision Adjustability

Achieve the ultimate driving position with PCI (Pro Car Innovations) Slider Seat Mounts. Designed specifically for the ZN/ZD chassis, these mounts are the professional’s choice for installing side-mount racing seats. PCI’s unique design allows the seat to sit significantly lower than factory mounts, which is critical for taller drivers and those wearing helmets on track. Unlike universal sliders that feel flimsy or "rattle," PCI uses heavy-duty, dual-locking sliders and precision-laser-cut steel to ensure your seat feels like a permanent part of the car’s structure.

Available Variants:

- Left / Driver Side (SM-FRS-L-S1)

- Right / Passenger Side (SM-FRS-R-S1)

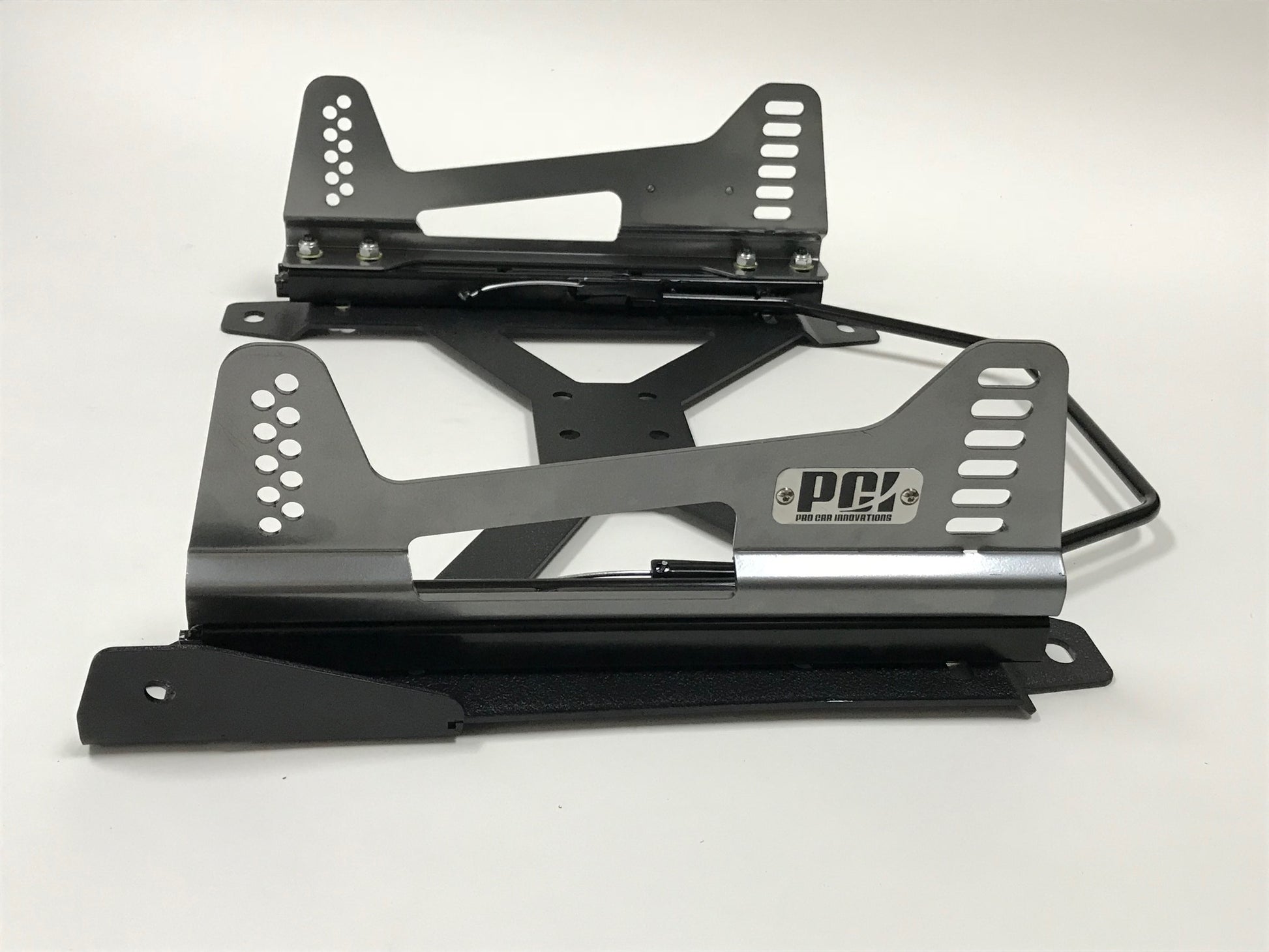

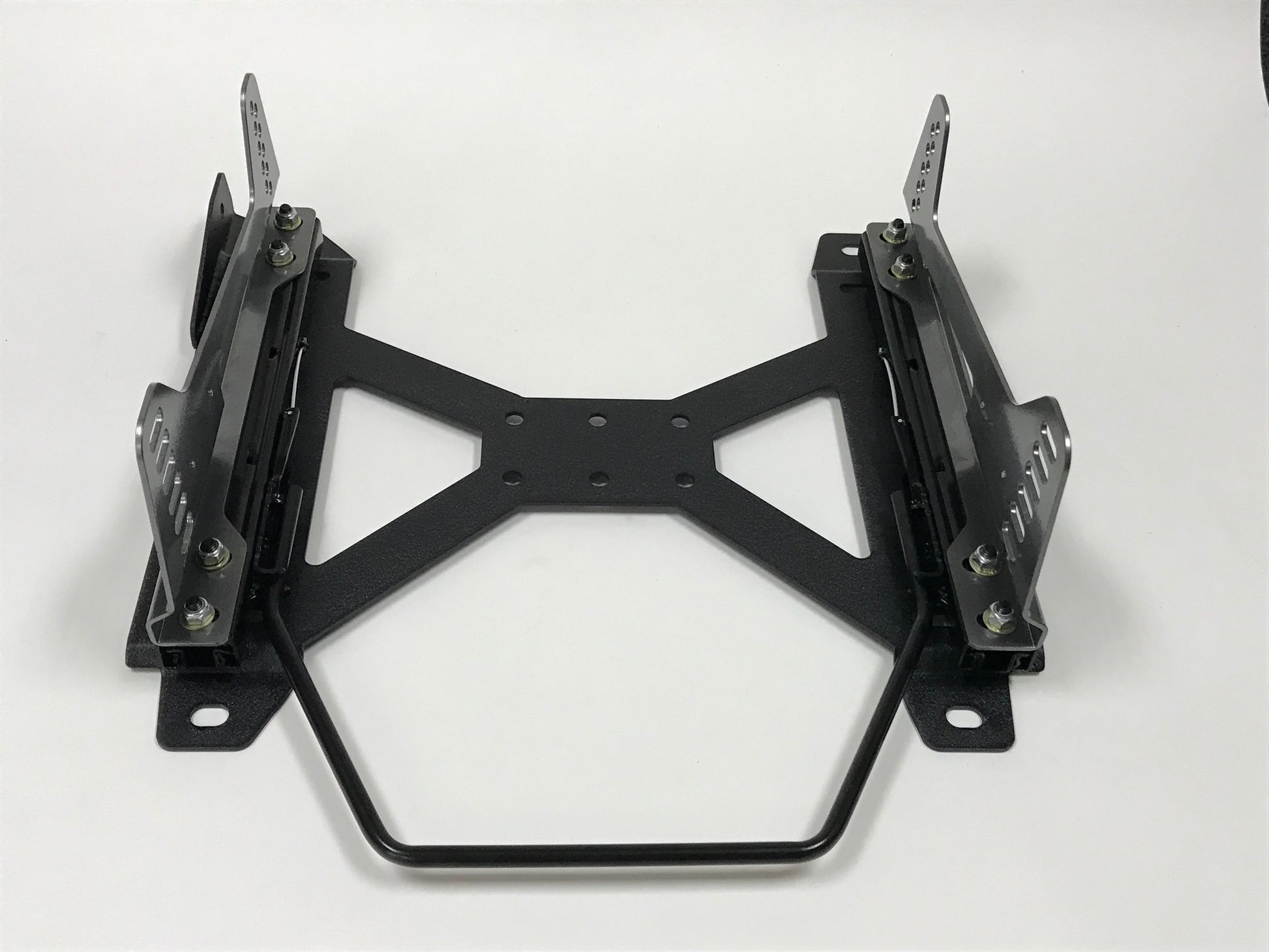

What’s Included in the Box:

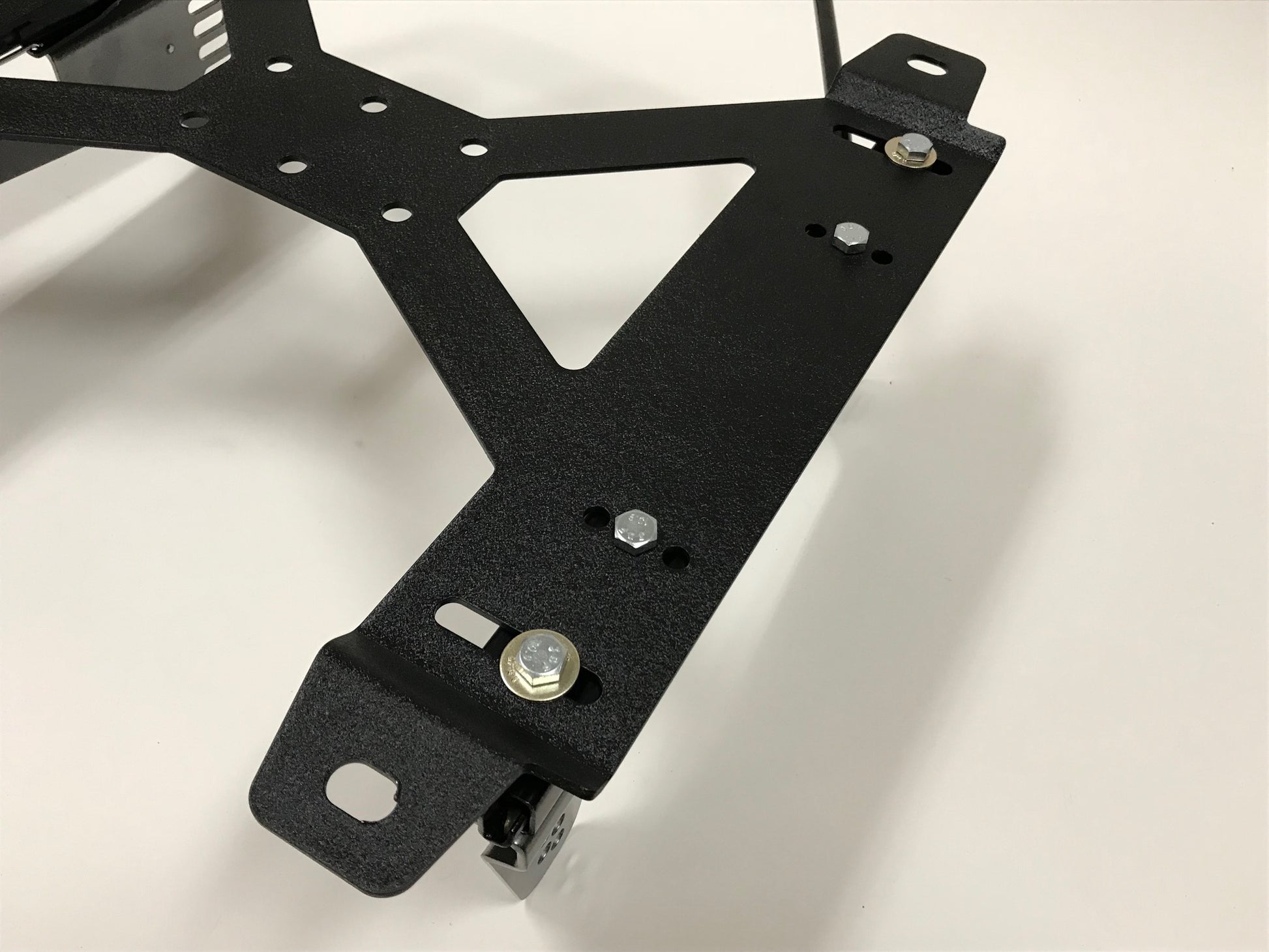

- Base Chassis Mount: Vehicle-specific laser-cut and CNC-formed plate.

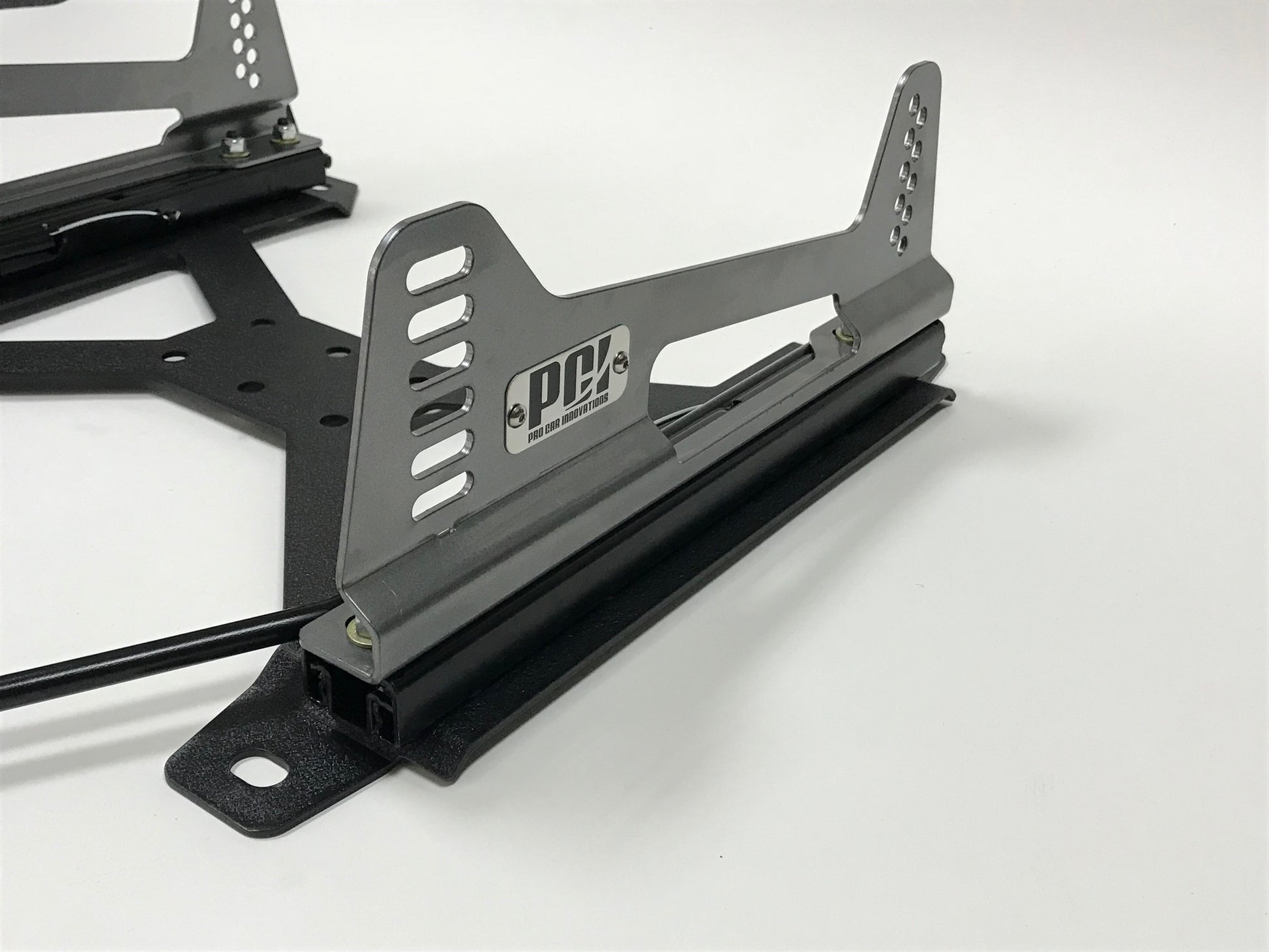

- Dual-Locking Sliders: High-strength sliding mechanism for easy fore/aft adjustment.

- Side Mount Brackets: Multi-slotted brackets for height and tilt tuning.

- Grade 8 Mounting Hardware: All high-tensile bolts and fasteners required for assembly.

The PCI Advantage

- Ultra-Low Seating Position: PCI mounts are designed to get the seat as close to the floor as possible. This lowers your center of gravity and provides the necessary clearance for roll cages and helmets.

- Dual-Locking Sliders: Safety is paramount. PCI uses sliders that lock on both rails simultaneously, preventing "seat twist" in the event of an impact and providing a much stiffer feel under heavy braking.

- Extreme Adjustability: The side mount brackets feature multiple mounting holes, allowing you to fine-tune the seat’s height and recline angle (rake) to your exact preference.

- Wide Seat Compatibility: Designed to fit most popular side-mount seats from brands like Sparco, Recaro, OMP, Bride, and Status. (Fits seats with a width of 390mm to 430mm).

- Zero-Flex Construction: Built from 3mm and 5mm high-carbon steel, then finished in a durable matte black powder coat. These mounts eliminate the "wobble" often found in cheap, universal bracket setups.

- Direct Bolt-On Fitment: No drilling or welding required. These mounts utilize the factory seat-mounting holes for a clean and secure installation.

Product Specifications

- Material: Laser-Cut High-Carbon Steel

- Finish: Matte Black Powder Coat

- Weight: Approximately 14 lbs per side

- Country of Origin: USA

Vehicle Compatibility

- Toyota GR86 (2022, 2023, 2024, 2025, 2026+)

- Subaru BRZ (2022, 2023, 2024, 2025, 2026+)

- Toyota 86 / Scion FR-S (2013-2021)

- Subaru BRZ (2013-2021)

Precision Tip: Because these mounts are designed to get the seat very low, you may need to trim or reposition the factory carpet slightly around the mounting feet for a 100% flush fit. When installing, we recommend bolting the base to the car first, then attaching the seat to the side mounts, and finally bolting the side mounts to the sliders. This makes it much easier to keep everything square and sliding smoothly.
