Radium Dual Catch Can Kit

Radium Dual Catch Can Kit - Toyota GR86 / Subaru BRZ (2022+)

Total Intake Protection & Patented Fluid Lock® Technology

The Radium Engineering Dual Catch Can Kit is the professional’s choice for the 2nd Generation GR86 and BRZ. This kit combines the PCV Side Kit (responsible for low-load/idle protection) and the CCV Side Kit (responsible for high-load/WOT protection) into one definitive package. By filtering both sides of the crankcase ventilation system, you prevent carbon buildup on your intake valves and stop oil from coating your intake sensors and intercooler (on boosted applications). Each can is equipped with a patented internal float valve that automatically "shuts off" if the reservoir is full, making it the safest catch can system for both high-intensity track use and long-distance daily driving.

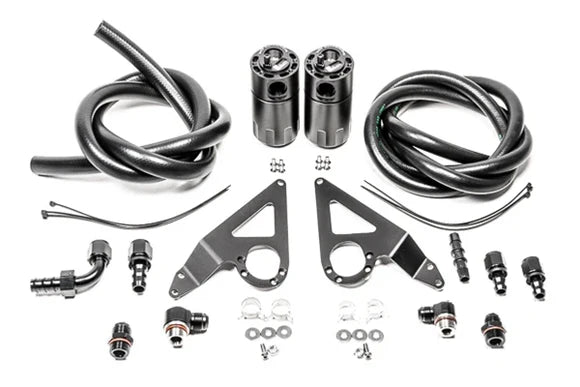

What’s Included in the Box:

- (2) Fluid Lock® Catch Cans: CNC-machined 6061 aluminum with 2-stage baffling.

- (2) Anodized Mount Brackets: Vehicle-specific brackets for both LH and RH sides.

- Full Hose Set: (1) 1/2 inch and (1) 5/8 inch oil-resistant PCV hoses.

- Premium Fitting Kit: Includes 10AN ORB to 10AN and 8AN male/swivel fittings.

- Pushlok Hose Ends: (4) Specialized ends for secure, leak-free plumbing.

- Stainless Steel Hardware: Comprehensive bolt kit for a direct, no-drill installation.

The Radium Advantage

- Patented Fluid Lock® Safety: This is the only system that provides a mechanical fail-safe. If you forget to empty the cans, the internal mechanism prevents the engine from ever "gulping" collected oil, which can lead to catastrophic engine failure.

- Dual-Zone Protection: * RH (Passenger) Side: Captures oil during vacuum-heavy states (idle and cruising).

- LH (Driver) Side: Captures oil during wide-open throttle (high-load track driving).

- Enhanced Performance: By keeping oil out of the combustion chamber, you effectively maintain a higher octane level and prevent the ECU from pulling timing due to "oil-induced" knock.

- Zero-Modification Fitment: Engineered specifically for the 2022+ chassis, utilizing factory holes and bosses for a 100% bolt-on install that is easily reversible.

- Maintenance-Friendly: Both cans feature O-ring sealed dipsticks for quick level checks and 2-piece bodies that unscrew for easy cleaning and draining.

- Closed-Loop & Track Legal: These are sealed systems that do not vent to the atmosphere (VTA), making them legal for most track organizations and street regulations.

Product Specifications

- Part Number: 20-0913-FL

- Total Capacity: 7 Fluid Ounces (Per Can)

- Ports: 10AN ORB (In/Out) / 4AN ORB (Drain)

- Finish: Stealth Black Anodized

- Weight: 7.5 lbs (Total Kit)

Vehicle Compatibility

- Toyota GR86 (2022, 2023, 2024, 2025, 2026+)

- Subaru BRZ (2022, 2023, 2024, 2025, 2026+)

- Note: Compatible with both LHD and RHD (RHD requires minor brake line adjustment).

Precision Tip: This dual kit is the "gold standard" for anyone running a Turbo or Supercharger kit. Boosted FA24 engines create significantly higher crankcase pressures, and this dual system ensures your intercooler stays free of oil film, maintaining maximum cooling efficiency and power.
