Radium Engineering PCV Catch Can Kit

Radium Engineering PCV Catch Can Kit - Toyota GR86 / Subaru BRZ (2022+)

Intake Valve Protection & Patented Fluid Lock® Safety

Keep your intake manifold clean and your combustion efficient with the Radium Engineering PCV Catch Can Kit. On the FA24 engine, the PCV (Positive Crankcase Ventilation) side is highly active during daily driving, idling, and deceleration. Without a catch can, the vacuum created during these times pulls a "mist" of oil and unburnt fuel directly into your intake tract. This kit features a 2-stage internal separation system that traps these contaminants in a 7 oz reservoir. Equipped with Fluid Lock® technology, the can features an internal float valve that automatically blocks the exit port if the reservoir reaches capacity, preventing a "gulp" of oil from reaching the engine—a feature exclusive to Radium Engineering.

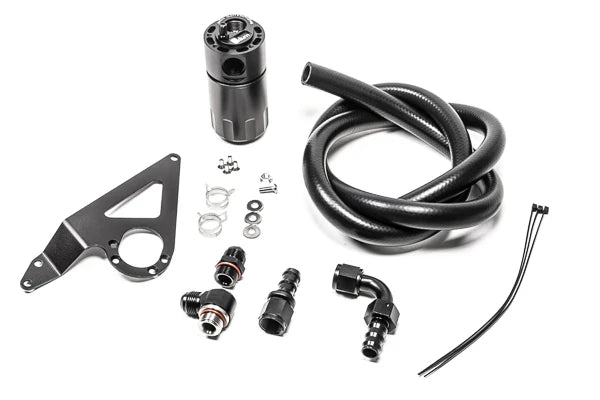

What’s Included in the Box:

- Fluid Lock® Catch Can: CNC-machined 6061 aluminum with 2-stage internal baffling.

- Vehicle-Specific Bracket: Anodized aluminum bracket designed for the RH (Passenger) side.

- PCV Hose Assembly: 5/8 inch oil-resistant, high-pressure PCV hose.

- Premium AN Fittings: 10AN ORB to 8AN male and swivel fittings for a leak-free seal.

- O-Ring Sealed Dipstick: For quick, clean oil level monitoring.

- Stainless Steel Hardware: Comprehensive hardware kit for a factory-level installation.

The Radium Advantage

- Patented Fluid Lock® Technology: Peace of mind for track and street. If the catch can is full, the Fluid Lock valve closes to prevent overfill ingestion, protecting your engine from catastrophic oil hydro-lock.

- Octane Protection: By removing oil vapors from the intake stream, you effectively raise the "knock resistance" (octane) of your air-fuel mixture, allowing the ECU to maintain optimal timing for maximum power.

- Direct Bolt-On Installation: No drilling, cutting, or permanent modifications required. The kit utilizes factory bosses on the chassis, making it a completely reversible upgrade.

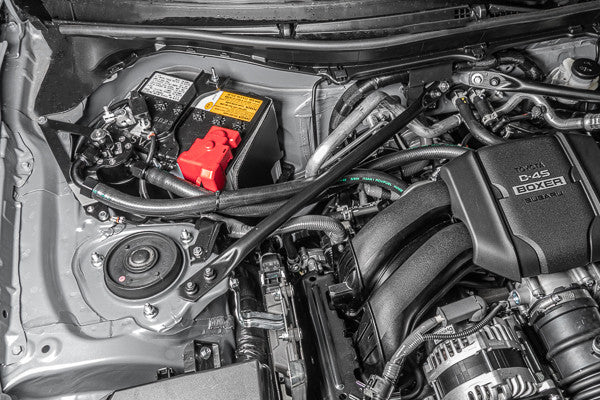

- Engineered for FA24: Strategically located in the RH corner of the engine bay for easy access and compatibility with most aftermarket forced-induction and cold air intake kits.

- Maintenance-Focused Design: The lower canister body unscrews easily for draining, and the integrated dipstick allows you to check levels in seconds without tools.

- Track & Emissions Legal: This is a closed-loop system that does NOT vent to the atmosphere (VTA). It is designed to be compliant with track regulations and emissions standards while keeping oil vapors out of the cabin.

Product Specifications

- Part Number: 20-0911-FL

- Position: RH (Passenger) Side of Engine Bay

- Interface: 5/8 Inch PCV Valve Line

- Capacity: 7 Fluid Ounces

- Material: 6061 Billet Aluminum (Anodized Black)

- Ports: 10AN ORB (In/Out), 4AN ORB (Drain)

Vehicle Compatibility

- Toyota GR86 (2022, 2023, 2024, 2025, 2026+)

- Subaru BRZ (2022, 2023, 2024, 2025, 2026+)

Precision Tip: The PCV side (this kit) is generally responsible for collecting more "sludge" (a mix of water and oil) than the CCV side, especially in colder climates. For the ultimate "bulletproof" setup, we recommend installing both this PCV kit and the Radium CCV Side Catch Can (20-0902-FL). If you are only installing one can to start, this PCV kit is the most important for maintaining clean intake valves on your 2nd Gen BRZ or GR86.
