Radium Fuel Filter Mount

Radium Fuel Filter Mount - Toyota GR86 / Subaru BRZ / FR-S

Secure, Bolt-On Mounting for High-Performance Filtration

Upgrade your fuel system’s serviceability and reliability with the Radium Engineering Fuel Filter Mount. This bracket is specifically engineered for the ZN/ZD chassis to provide a rock-solid mounting point for a Radium 60mm fuel filter (sold separately). Whether you are preparing for an E85 conversion or simply want to move your fuel filter to a location where it can actually be serviced without dropping the fuel pump, this mount is the professional solution. CNC-machined from billet aluminum and finished in Radium’s signature black anodizing, it offers a clean, factory-plus look while withstanding the vibration and harshness of a track-driven environment.

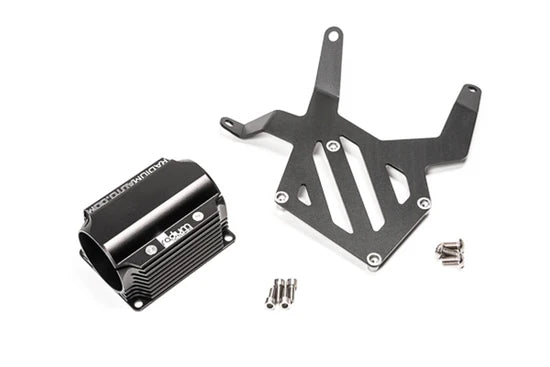

What’s Included in the Box:

- Billet Aluminum Mount: (1) 2-piece CNC-machined clamping bracket.

- Chassis Adapter Bracket: (1) Laser-cut, anodized aluminum bracket.

- Stainless Steel Hardware: All necessary bolts and washers for installation.

- Nylon Spacers: Included for precise fitment against the chassis.

The Radium Advantage

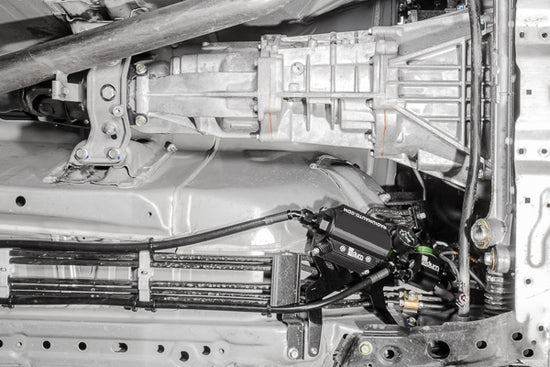

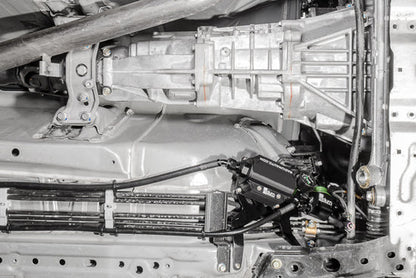

- No-Drill Installation: This mount is designed to utilize an existing threaded hole in the chassis (located near the LH rear suspension area), making installation a 10-minute bolt-on affair.

- 60mm Compatibility: Specifically designed to house any Radium Engineering 60mm fuel filter (Standard, Micro, or Fuel Pump Manifold styles).

- Billet 6061-T6 Construction: Unlike universal "P-clamps" or thin steel brackets, this mount is machined from high-strength aluminum to ensure the filter never vibrates loose or stresses your fuel lines.

- Black Anodized Finish: Provides a stealthy look while protecting the aluminum from oxidation and road salt.

- Ideal for E85 Builds: External filters are a "must" for E85 users who need to inspect and clean their filters more frequently due to the cleaning properties of ethanol.

Product Specifications

- Part Number: 20-0912

- Material: 6061-T6 Billet Aluminum

- Clamping Diameter: 60mm (2.36 inch)

- Finish: Black Anodized

- Hardware: 18-8 Stainless Steel

Vehicle Compatibility

- Toyota GR86 (2022, 2023, 2024, 2025, 2026+)

- Subaru BRZ (2022, 2023, 2024, 2025, 2026+)

- Toyota 86 / Scion FR-S (2013-2021)

- Subaru BRZ (2013-2021)

Precision Tip: This product is the mount only. To complete the installation, you will need a Radium 60mm Fuel Filter (such as 20-0010) and the appropriate adapter fittings and fuel lines. Moving the filter to the chassis not only makes filter swaps a 5-minute job, but it also allows you to run high-flow stainless steel mesh filters that provide much better protection for expensive aftermarket injectors than the OEM paper element.
