Radium Fuel Hanger Plumbing Kit

Radium Fuel Hanger Plumbing Kit - Toyota GR86 / Subaru BRZ / FR-S

High-Flow External Filtration & E85-Ready Plumbing

The Radium Engineering Fuel Hanger Plumbing Kit is a comprehensive solution designed to work seamlessly with Radium Fuel Hangers. This kit replaces the restrictive factory fuel feed line with high-flow, -8AN equivalent PTFE-lined hoses that are 100 percent compatible with all fuel types, including E85. The center-piece of this kit is the Radium 60mm external fuel filter, which is relocated to the chassis for significantly easier maintenance. By moving the filtration outside the tank, you not only increase flow capacity but also ensure your fuel remains debris-free—critical for protecting expensive high-flow injectors.

Available Filter Variants:

This kit is offered with two different filter elements depending on your fuel choice and maintenance preference:

- Microglass Filter - 5 Micron (20-0966-05): Best for standard pump gas (91/93 Octane). The microglass element provides the finest filtration possible but is not washable and must be replaced if used with heavy ethanol.

- Stainless Filter - 40 Micron (20-0966-03): The "Gold Standard" for E85 and Flex Fuel. The stainless steel mesh element is compatible with corrosive fuels and is washable/reusable, making it ideal for high-performance racing applications.

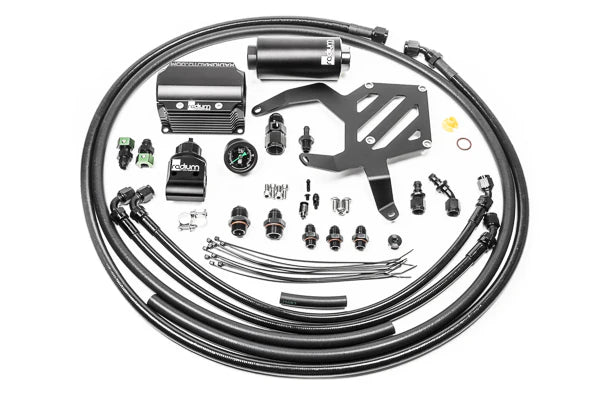

What’s Included in the Box:

- 60mm External Fuel Filter: (1) Anodized aluminum assembly with your choice of element.

- Billet Chassis Mount: (1) Vehicle-specific mounting bracket for a no-drill installation.

- PTFE Fuel Lines: Pre-assembled, E85-compliant hoses with crimped swivel fittings.

- Adapter Fittings: All necessary -AN to OEM quick-connect adapters for the engine bay.

- Stainless Hardware: All bolts and spacers required for a secure fit.

The Radium Advantage

- E85 Compatibility: The included PTFE (Teflon) hoses are impervious to the corrosive nature of ethanol, preventing the "fuel smell" and hose degradation common with standard rubber lines.

- Simplified Maintenance: No more dropping the fuel tank to change a filter. The external mount places the filter in an accessible location under the chassis.

- High-Flow Performance: Designed to support 500+ WHP by eliminating the bottlenecks found in the factory plastic fuel lines and small-diameter connectors.

- Direct-Fit Engineering: This kit utilizes factory chassis holes for mounting, ensuring a professional, "factory-plus" look that doesn't require permanent modification to your 86 or BRZ.

Product Specifications

- Part Numbers: 20-0966-05 (Microglass) / 20-0966-03 (Stainless)

- Line Material: PTFE with Black Outer Jacket

- Filter Diameter: 60mm

- Fitting Type: -8AN / OEM Quick-Connect

- Finish: Black Anodized

Vehicle Compatibility

- Toyota GR86 (2022, 2023, 2024, 2025, 2026+)

- Subaru BRZ (2022, 2023, 2024, 2025, 2026+)

- Toyota 86 / Scion FR-S (2013-2021)

- Subaru BRZ (2013-2021)

Precision Tip: If you are planning on running E85, the Stainless Filter (20-0966-03) is a mandatory choice. Ethanol is a natural detergent and will strip the "gunk" out of your fuel tank, which can quickly clog a standard paper or microglass filter. With the stainless element, you can simply clean it out after your first few tanks of E85 and get right back to the track.
