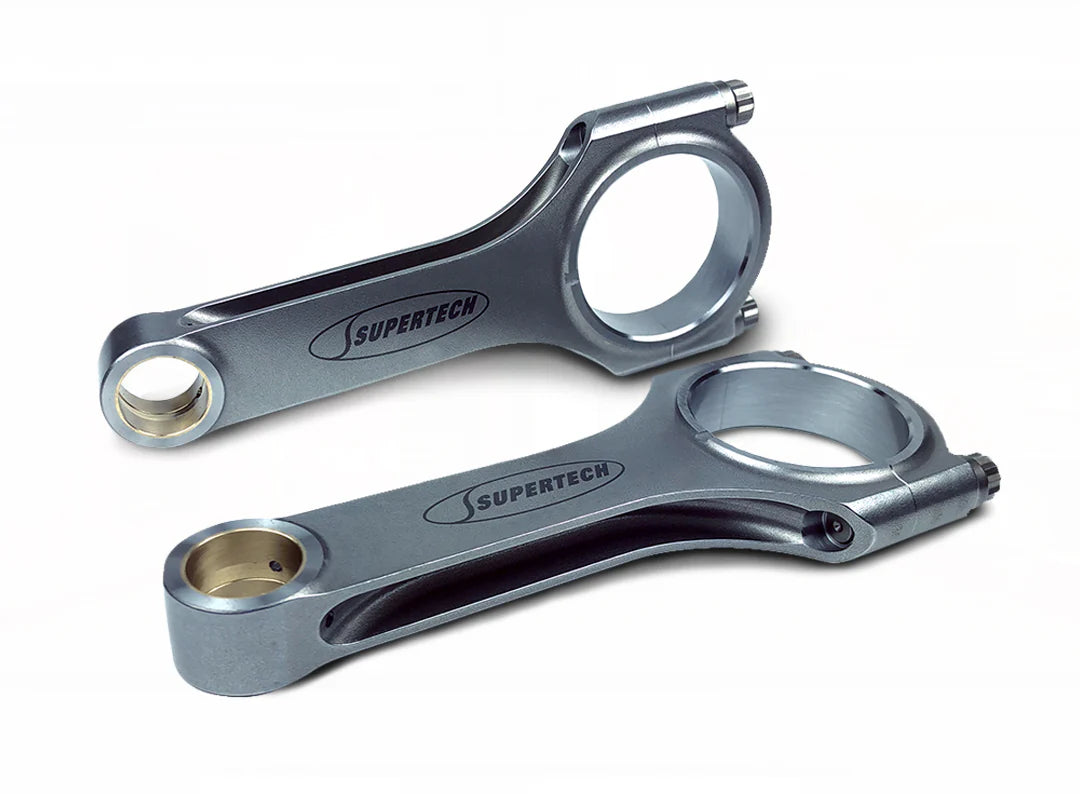

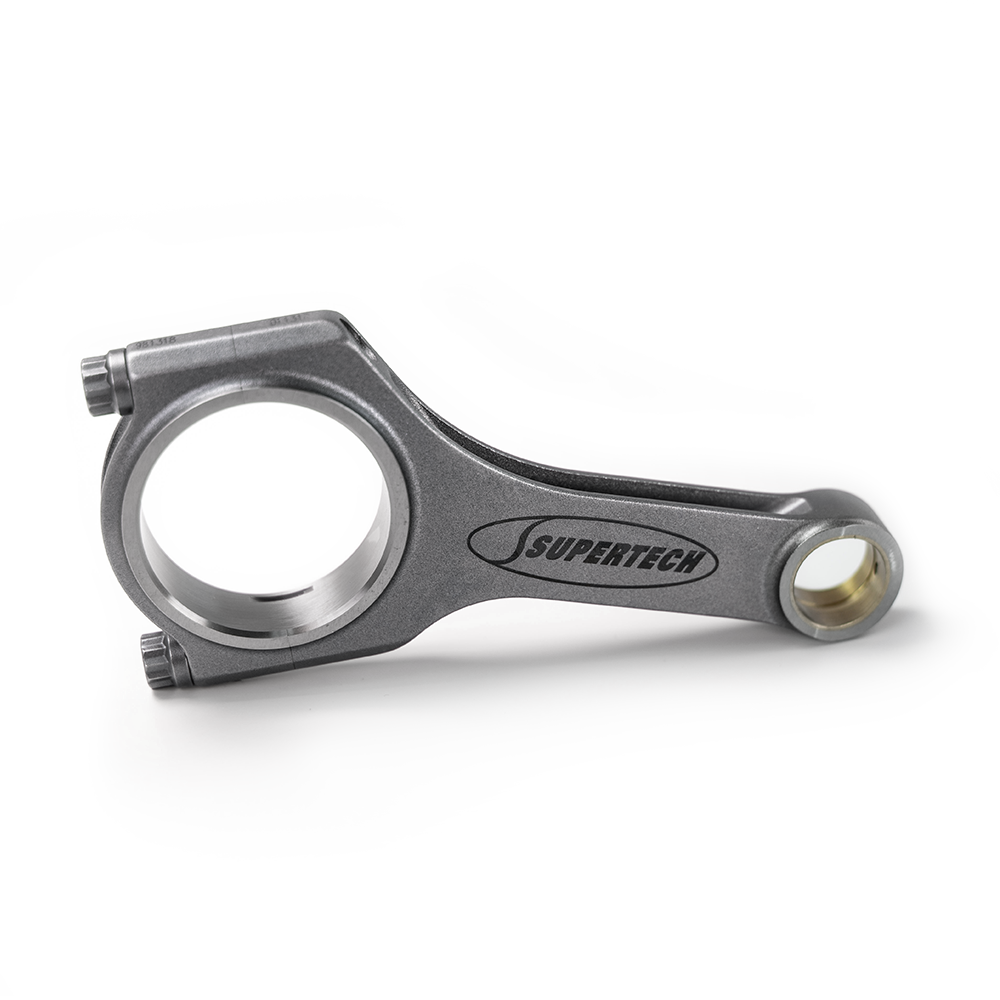

Supertech Forged Connecting Rod (FA20)

Connecting Rods for Scion FRS FA20D 2.0L (Non-Turbocharged) Engines

CR-FA20-H129.3 Set of 4 Connecting Rods

Our newly develop rods, are manufactured from a high tensile strength 4340 alloy, offering excellent wear and fatigue resistance in optimal conditions. All our rods feature H-beam design and come with ARP 2000 bolts capable of achieving a clamp load of 220,000 psi. Our rods are rated for 150hp/Cylinder. For more horsepower we suggest upgrading to the APR625+ Bolts capable of achieving 280,000 Psi and rated for 250hp/Cylinder.

All Rods are design in house, using the latest CAD and FEA software to ensure the highest quality connecting rods on the market.

Piston Features:

• Center To Center: 129.38mm
• Weight: 533.9
• Big End Width: 21.40mm
• Piston End Bore: 22mm
• Big End Bore: 53mm
• Piston End Width: 21.40mm
