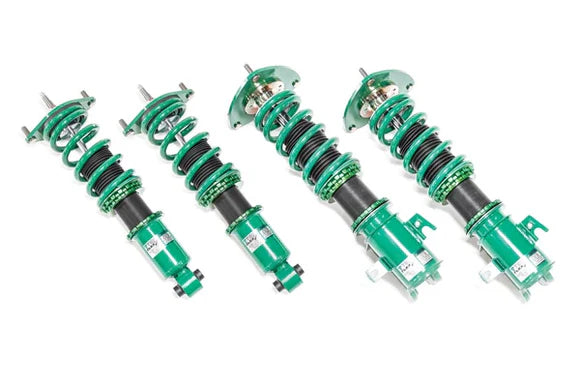

TEIN Flex Z Coilovers

TEIN Flex Z Coilovers - Toyota GR86 / Subaru BRZ / Scion FR-S (2013+)

Performance Handling Meets Street Comfort

Achieve the perfect stance and handling balance with the TEIN Flex Z Coilover Kit. Specifically tuned for the 86/BRZ platform, this kit utilizes a twin-tube internal design. Unlike mono-tube race shocks that can feel harsh on uneven pavement, the twin-tube system allows for a longer stroke and smoother damping, making it ideal for street-driven cars that occasionally see the track. With 16 levels of damping adjustment and a full-length height adjustment system, you can lower your center of gravity significantly while maintaining the full travel of the shock, ensuring your ride quality stays consistent whether you’re at a "show" height or a "track" setup.

Product Details:

- Product #: VSQ54-CUSA4

What’s Included in the Box:

- (4) Full Coilover Assemblies: Pre-assembled and ready to bolt in.

- (4) Upper Mounts: Reinforced rubber rear mounts and pillowball front mounts (camber adjustable).

- (2) Height Adjustment Wrenches: Specialized TEIN spanners.

- Dust Boots & Bump Rubbers: Pre-installed to protect the piston rods.

- Instruction Manual: Vehicle-specific setup guide.

The TEIN Advantage

- Twin-Tube Design: Optimized for a supple ride on city streets while providing the stability needed for spirited cornering.

- Full-Length Height Adjustment: You adjust the height by moving the bottom bracket, not the spring seat. This means your suspension travel remains the same regardless of how low you go.

- 16-Level Damping Adjustment: Uses TEIN’s "ADVANCE Needle" technology to give you a wide range of control over rebound and compression with a single click.

- Pillowball Camber Plates: The front coilovers come with integrated camber-adjustable top mounts, allowing you to dial in negative camber for better front-end grip without buying additional parts.

- EDFC Compatible: Compatible with TEIN’s Electronic Damping Force Controller, allowing you to change your suspension stiffness from a digital display inside the cabin.

- ZT Coating & Rust-Proofing: The shell cases are treated with a specialized fluorine coating to prevent the threads from seizing in salty or wet conditions.

- No-Sag Springs: Manufactured from high-tensile SAE9254 steel to ensure your ride height never "settles" or drops over time.

Product Specifications

- Spring Rates: 6.0 kg/mm (336 lbs/in) Front & Rear

- Lowering Range (Front): -1.4" to 0" (Recommended) / -2.3" to 0" (Max)

- Lowering Range (Rear): -1.8" to -1.0" (Recommended) / -3.4" to 0.2" (Max)

- Design: Twin-Tube, Sealed Structure (Non-rebuildable, but replacement dampers are available)

- Country of Origin: Made in Japan

Vehicle Compatibility

- Toyota GR86 (2022, 2023, 2024, 2025, 2026+)

- Subaru BRZ (2013-2021 & 2022+)

- Toyota 86 / Scion FR-S (2013-2021)

Precision Tip: TEIN coilovers are famous for their "out of the box" settings, but for the 86 platform, we recommend starting at 8 clicks from stiff for a perfect weekend-warrior balance. If you find the rear end feels a bit "bouncy" on the highway, soften the rear dampers by 2 clicks compared to the front. Also, since these use a sealed structure, they cannot be rebuilt; however, TEIN sells individual replacement dampers (shock bodies) for a very low cost, making a "refresh" after 50k miles easier than a rebuild!
