Tomei Expreme Joint Pipe Ver.2

Tomei Expreme Joint Pipe Ver.2 - GR86 / BRZ / FR-S

Eliminate the Bottleneck & Maximize Exhaust Velocity

Complete your high-performance exhaust path with the Tomei Expreme Joint Pipe (Overpipe) Ver.2. While many owners focus on the header and catback, the joint pipe is the critical "missing link" that often stays stock, creating a major restriction in airflow. Tomei’s Ver.2 design is crafted from high-grade SUS304 stainless steel and features a constant 60.5mm diameter from flange to flange. By utilizing mandrel-bent piping and lost-wax cast flanges, this joint pipe ensures a perfect fit and a massive increase in flow efficiency over the factory unit, resulting in improved mid-range torque and sharper throttle response.

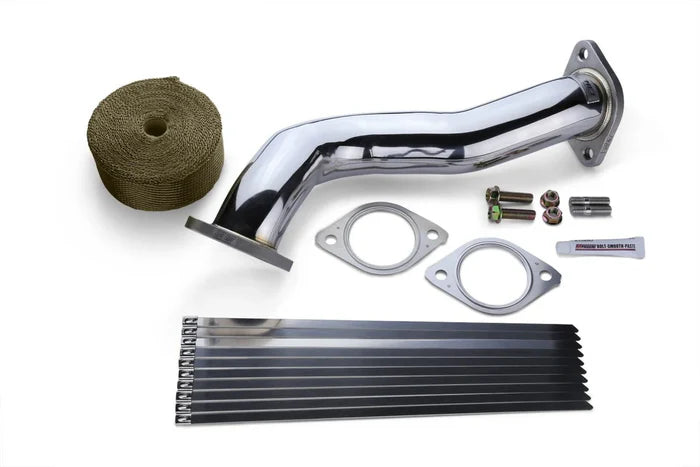

What’s Included in the Box:

- Expreme Joint Pipe: (1) SUS304 Stainless Steel overpipe assembly.

- Exhaust Flange Gaskets: (2) Multi-layer gaskets for a leak-free seal.

- Installation Hardware: All necessary bolts and nuts for a secure fit.

- Titan Exhaust Bandage: Premium heat wrap to keep ambient temperatures down.

- Stainless Steel Bands: For securing the heat wrap.

- Bolt Smooth Paste: Specialized anti-seize for high-heat hardware.

The Tomei Advantage

- Constant 60.5mm Diameter: Unlike the stock pipe that narrows in the bends, the Tomei Joint Pipe maintains a full 60.5mm (approx. 2.38 inch) diameter throughout, drastically reducing backpressure.

- SUS304 Stainless Steel Construction: Built for the long haul, this pipe is resistant to corrosion and high-heat oxidation, ensuring it looks and performs as intended for the life of the vehicle.

- Lost-Wax Cast Flanges: Tomei utilizes high-precision casting for the flanges, providing a much stronger and flatter mating surface than traditional stamped or cut flanges, which prevents exhaust leaks.

- Weight Reduction: By simplifying the design and using high-quality materials, Tomei has managed to shed significant weight compared to the bulky factory overpipe.

- Heat Management Included: Because this pipe sits close to sensitive engine components, Tomei includes their signature "Titan" heat wrap to shield the engine bay from radiant exhaust heat.

- Perfect Fitment: Developed and tested on both the 1st and 2nd Gen platforms to ensure zero rattling or interference with the subframe, even during aggressive engine movement.

Product Specifications

- Part Number: TB6060-SB05A

- Material: SUS304 Stainless Steel

- Pipe Diameter: 60.5mm

- Pipe Thickness: 1.5mm

- Flange Thickness: 10.0mm / 12.0mm

- Finish: Brushed Stainless

Vehicle Compatibility

- Toyota GR86 (2022, 2023, 2024, 2025, 2026+)

- Subaru BRZ (2022, 2023, 2024, 2025, 2026+)

- Toyota 86 / Scion FR-S (2013-2021)

- Subaru BRZ (2013-2021)

Precision Tip: This is a "must-have" mod if you are already running an aftermarket header. The factory overpipe is so restrictive that it can actually negate some of the gains from a high-flow manifold. When installing, we highly recommend wrapping the pipe with the included Titan wrap before putting it into the car, as the clearance around the subframe is very tight. This is also the best time to check your passenger-side engine mount for wear, as you'll have direct access to it!
