Tomei Expreme Ti Full Titanium Muffler

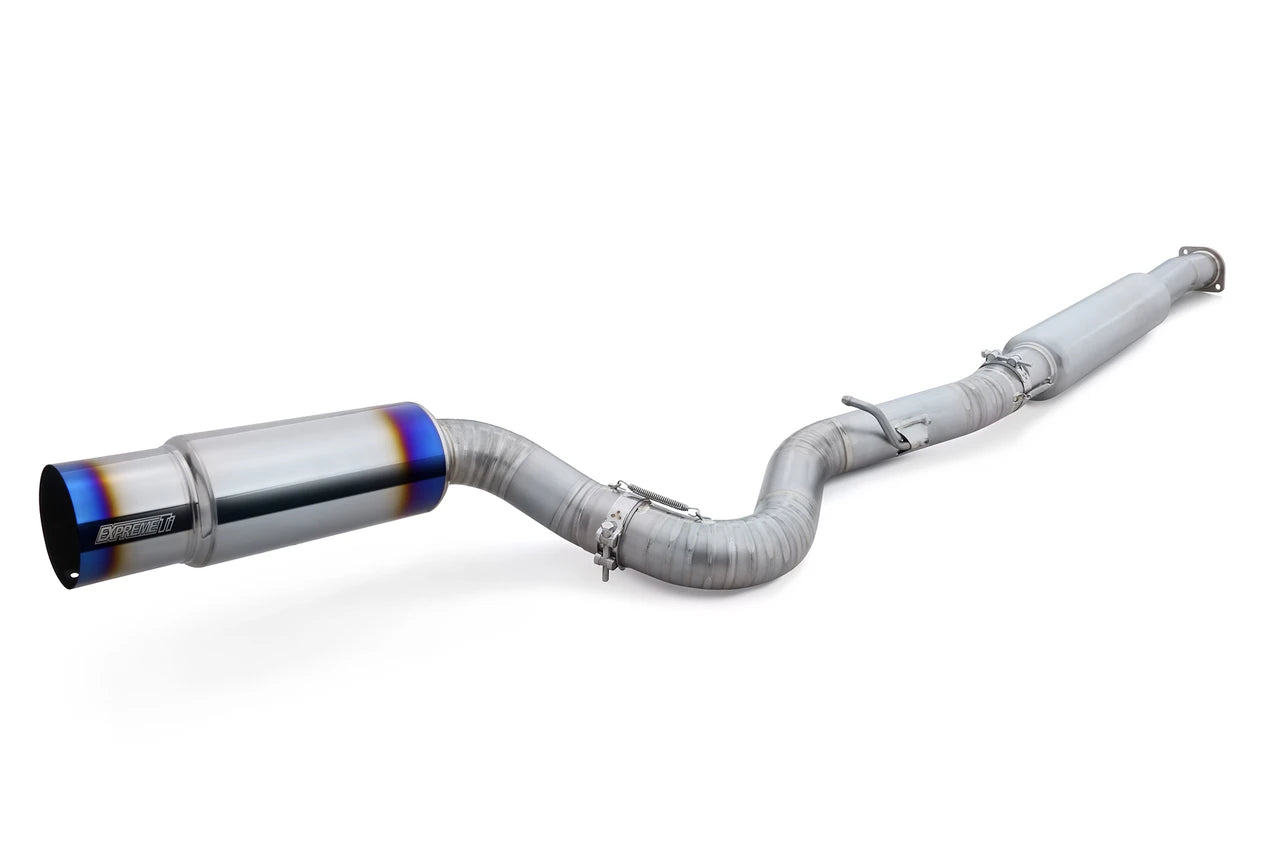

Tomei Expreme Ti Full Titanium Muffler - Type-80 Ver.3 (GR86 / BRZ / FR-S)

The Pinnacle of Ultra-Lightweight Racing Performance

Experience the ultimate evolution of the legendary Type-80 series with the Tomei Expreme Ti Ver.3. While Ver.1 and Ver.2 set the stage, Ver.3 was completely redesigned to perfect the fitment on the 2022+ ZN8/ZD8 chassis. By utilizing 1.0mm ultra-thin premium titanium and a straight-through 80.5mm (3.17 inch) piping layout, Tomei has achieved a staggering weight of just 15.4 lbs—saving over 20 lbs compared to the factory setup. This Version 3 update features a redesigned, smaller silencer to increase sound volume and a revised protrusion length that aligns perfectly with the 2nd Gen rear bumper, ensuring zero interference and a striking, race-ready aesthetic

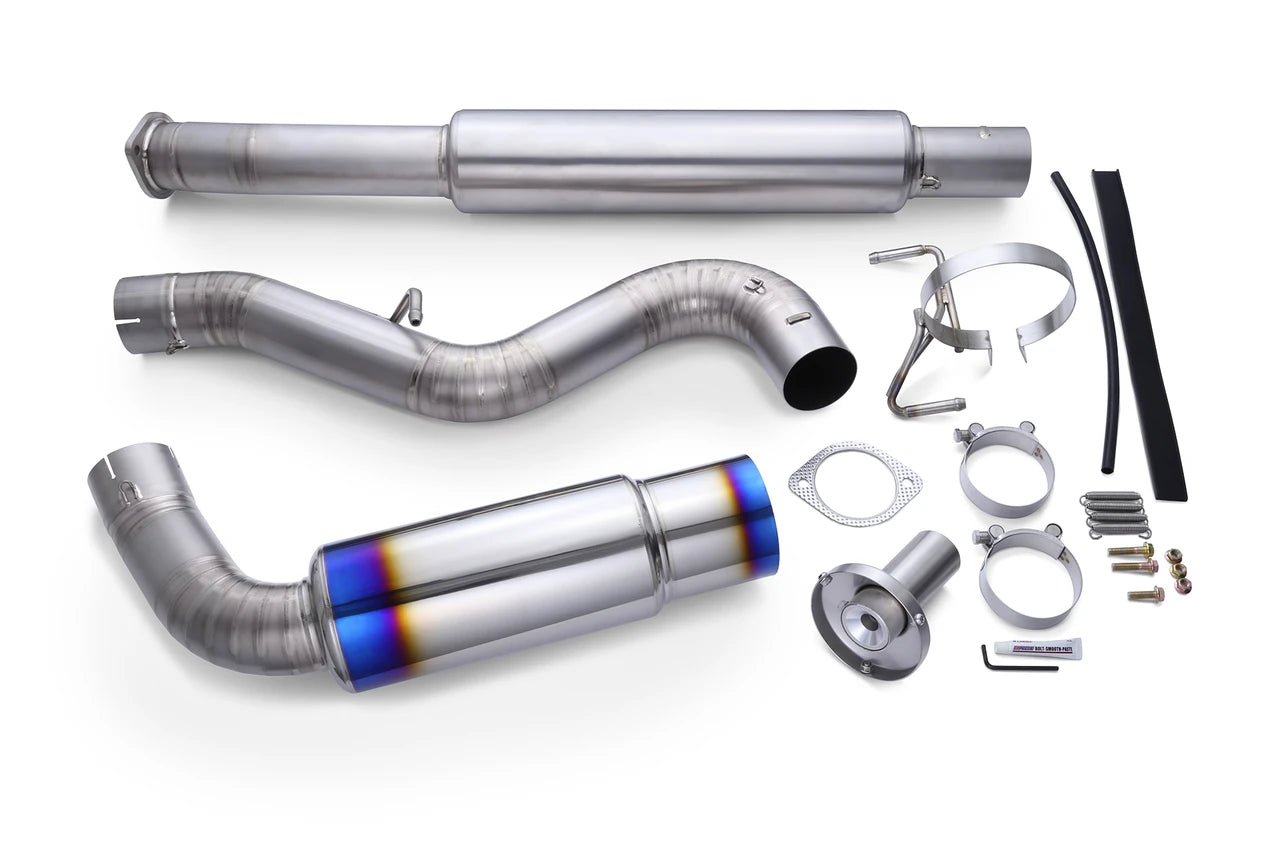

What’s Included in the Box:

- 3-Piece Titanium Assembly: Main pipe, mid-pipe, and silencer section.

- Titanium Silencer (Muffler): Redesigned 135mm diameter shell with heat gradation finish.

- Spring & Clamp Kit: High-strength connecting springs and clamp bands for a flange-less, leak-free seal.

- Full Gasket Set: Including the 80mm flange gasket.

- Installation Hardware: All necessary bolts, nuts, and specialized Bolt Smooth Paste.

- Removable Inner Silencer: For those days when you need to drop the decibel level for street use.

The Tomei Advantage

- Ultra-Lightweight Construction: At 6.9kg (15.4 lbs), this is the lightest Type-80 ever produced. The reduction in "overhang weight" at the rear of the car significantly improves the vehicle’s rotation and handling balance.

- 80.5mm High-Flow Piping: The massive 3.17-inch diameter is designed to handle everything from high-revving NA builds to high-boost turbo applications without creating backpressure.

- The "Force of Titanium" Sound: Unlike stainless steel, thin-wall titanium creates a unique harmonic resonance. The sound is dry, sharp, and unmistakably "racing," with a powerful low-end rumble that transitions into a fierce mechanical scream at high RPM.

- Ver.3 Optimized Fitment: Specifically engineered to clear the FA24 oil pan and rear subframe with zero rattling. The tip protrusion is now optimized for the 2022+ bumper, though it remains compatible with the 2013-2021 chassis.

- Spring-Hook Joint Design: By using springs and clamps instead of heavy flanges, the system can flex slightly with engine torque, preventing the cracks and stress fractures common in rigid titanium exhausts.

- Premium Aesthetics: Featuring a 115mm (4.5 inch) blue-burnt tip with a laser-etched Expreme Ti logo, this exhaust provides the iconic JDM look that defines the 86/BRZ platform.

Product Specifications

- Part Number: TB6090-SB05C

- Material: 100% Titanium (1.0mm Wall Thickness)

- Main Pipe Diameter: 80.5mm (3.17 inch)

- Exit Tip Diameter: 115.0mm (4.5 inch)

- Silencer Diameter: 135.0mm (Ver.3 exclusive)

- Total System Weight: 15.4 lbs (6.95kg)

Vehicle Compatibility

- Toyota GR86 (2022, 2023, 2024, 2025, 2026+)

- Subaru BRZ (2022, 2023, 2024, 2025, 2026+)

- Toyota 86 / Scion FR-S (2013-2021)

- Subaru BRZ (2013-2021)

Precision Tip: This is a "Type-80" system, meaning it is designed for maximum flow. If you are running a stock header and front pipe, the volume is aggressive but manageable. However, if you combine this with an aftermarket UEL header and a dual-resonated front pipe, it becomes one of the loudest setups on the street. We recommend keeping the included inner silencer in the car for early morning cold starts or long highway trips to avoid unwanted attention.
